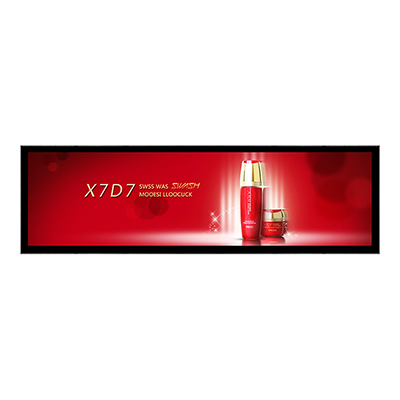

88 inch stretched bar screen specification
|
Product Name |
88 inch stretched bar screen |
|
|
Display Screen Size |
88 inch |
|
|
Product Model |
HY-880BAM |
|
|
Display Screen Features |
Display Screen Type |
LG 88-inch A-gauge backlit HD LCD |
|
Touch Area |
2159*598mm |
|
|
Resolution |
3840(H) x 1080(V)， 4K FHD |
|
|
Color(Max) |
1.07B (8-bit + Dithering) |
|
|
Brightness |
500cd /m2 (Brightness can be customized) |
|
|
Contrast Ratio |
1200:1(typ) |
|
|
Visual Angle |
178°(upper 89/ Lower 89/ Left 89/ Right 89) |
|
|
PC Compatible |
VGA/SVGA/XGA/SXGA/UXGA |
|
|
Android System Parameters |
CPU |
Crystal T972 chip, quad-core Cortex-A55 processor, main frequency up to 1.9 GHz |
|
Ram |
DDR3 2G |
|
|
Hard Drive |
EMMC 16G |
|
|
GPU |
Mali-g31 GPU; Supports 4K and H.265 hard decoding |
|
|
Multimedia |
HDMI IN/ V-BY-One/LVDS and other input and output interfaces |
|
|
Video format |
Support the RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV, MP, etc |
|
|
Image format |
Supports BMP, JPEG, PNG, GIF, etc |
|
|
Play mode |
Supports multiple playback modes such as loop, timing and interstition |
|
|
RTC Real-time clock |
Support |
|
|
Time switch |
Support |
|
|
Network support |
Ethernet, WiFi, Bluetooth |
|
|
WiFi |
2.4GHZ |
|
|
Bluetooth |
4.2 |
|
|
System upgrade |
Support network upgrade, USB/TF card upgrade, computer upgrade |
|
|
Input/output ports |
Power supply *1, USB*2, HDMI*1, RJ45*1, TF card *1, SIM card *1 |
|
|
Pre-install system |
Android 9.0 system and common APP software |
|
|
Computer response |
Automatic computer identification |
|
|
Response speed |
≤6ms |
|
|
Speaker Type |
optional |
|
|
Touch |
Infrared/Nano (custom optional) |
|
|
Input Voltage |
AC110-220V 50-60HZ |
|
|
Product power |
Normal<85 w |
|
|
Power saving |
<1 w |
|
|
Product Dimension |
See attached Dimension picture |
|
|
Accessories |
1*power cable + 1*WiFi antenna + 1*certificate |
|
|
Package |
Packed in honeycomb case with pearl cotton protective screen |
|
|
Install Method |
Customize according to customer requirements |
|
